Process Equipment Boilers Manufacturers India Ashoka Machines
Process Equipment Boilers Manufacturers

Process Equipment Boilers Manufacturers – BOILERS


ASHOKA one of the leading Steam Generator Boiler Manufacturers In India, supplies steam generation boilers for industrial applications where steam for the process is required such as sugar plants, rice mills, pulp, paper, chemical, food industries etc. Boilers are designed based on a number of factors including- capacity of steam generation, exit pressure of steam, type of fuel, type of feeding of fuel, type of construction etc.

Process Equipment Boilers Manufacturers, Various forms and types of fuels can be used for firing of the boiler depending upon the availability and economic feasibility. Bagasse (from cane), Wood Chips, Paddy Husks, Goundnut Shell, Cocoa Shell, Saw Dust, Coal, Lignite etc. Steam generator Larger capacities boilers and high pressure boilers are used for cogeneration of process steam and power using a suitable turbine Modulating cyclo motor for Spreader Dampers.

Process Equipment Boilers Manufacturers Industrial Boilers

Supply Range ASHOKA can supply boilers starting within the following range:

  • Steam production capacity from 5 MT to 175 MT
  • Pressure from 10 Kg/cm2 to 110 Kg/cm2
Type of Fuels Used Various forms and types of fuels can be used for firing of the boiler depending upn the availability and economic feasibility. Some of the commonly used fuels are-

Bagasse (from cane), Wood Chips, Paddy Husks, Goundnut Shell, Cocoa Shell, Saw Dust, Coal, Lignite etc.

KEY FEATURES OF VARIOUS TYPES OF BOILERS
AFBC Boilers §  Bi-drum or Single Drum, Water Tube, Natural circulation top or bottom supported design,

§  Better evaporator design for better reliability,

§  Suitable for saturated and superheater steam for cogeneration and captive power plants,

§  Multifuel firing options,

§  Underbed or Overbed fuel feed system,

§  Bottom Hopper Design for specific applications,

§  Optimum combustion with staged Secondary Air System.

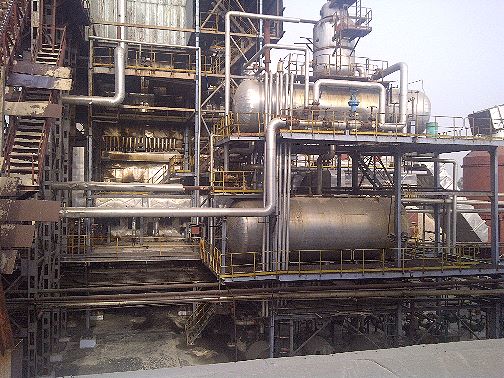

Bi-Drum Boilers



  • Two drums which are connected by a large number of convective heat transfer tubes,
  • Both over bed & under bed options are available,
  • Better fluidization & more residence time,
  • High combustion efficiency can be achieved.
  • Steam generator Larger capacities boilers and high pressure boilers are used for cogeneration of process steam and power using a suitable turbine Modulating cyclo motor for Spreader Dampers.
Travelling Grate Boilers
  • Continuous discharge of ash,
  • Bi-Drum or single drum with natural circulation,
  • Top supported Design,
  • Tall furnace for stagged/complete combustion,
  • Optimum combustion with staged secondary air system,
  • 2 Stage/3Stage superheater with interstage spray attemperator.
  • Even Fuel Distribution on the Entire Grate,
  • Modulating cyclo motor for Spreader Dampers,
  • Grate Driven by hydraulic drive/ mechanical drive.
  • Process Equipment Boilers Manufacturers



Dumping Grate Boilers
  • Generously sized grate,
  • Soot Blowers for on load cleaning of heating surface,
  • Secondary air distribution system,
  • Pneumatically operated sectionalized dumping grate,
  • Two stage superheaters with single stage attemperator for accurate steam temperature control.
  • Process Equipment Boilers Manufacturers
